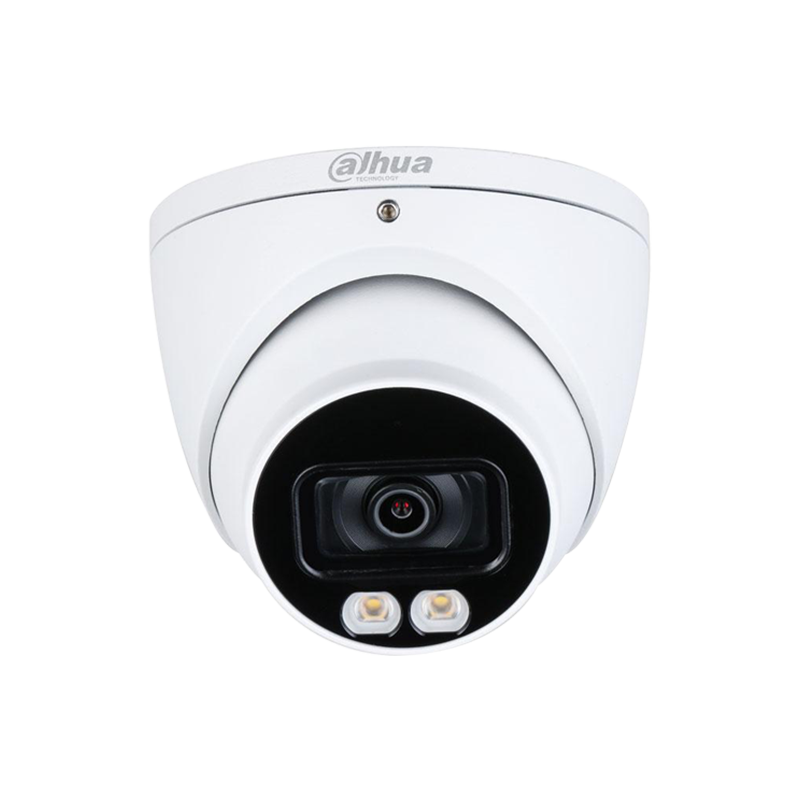

CAMERA - DAHUA DH-HAC-HDW1509TP-A-LED-0280 5MP STARLIGHT
$26.88
$53.49
Camera Image Sensor 1/2.7 inch CMOS Effective Pixels 2592 (H) × 1944 (V), 5MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s S/N Ratio >65dB Minimum Illumination 0.005Lux/F1.2, 0Lux White Light on Fill Light (White Light) Distance Distance up to 40 m (131.23 ft) Fill Light On/Off Control Auto; manual Fill Light Number 2 Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm Max. Aperture F1.2 Field of View 2.8 mm: 129° × 98° × 71° (diagonal × horizontal × vertical) Iris Type Fixed iris Close Focus Distance 2.8 mm: 1.6 m (5.25 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 67.5 m (221.5 ft) 27.0 m (88.6 ft) 13.5 m (44.3 ft) 6.7 m (22.0 ft) Video Frame Rate CVI: PAL: 5M@20fps, 4M@25fps, 1080P@25fps; NTSC: 5M@20fps, 4M@30fps, 1080P@30fps AHD: PAL: 5M@20fps, 4M@25fps; NTSC: 5M@20fps, 4M@30fps TVI: PAL: 5M@20fps, 4M@25fps; NTSC: 5M@20fps, 4M@30fps CVBS: PAL: 960H; NTSC: 960H Resolution 5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (704 × 576/704 × 480) BLC BLC/HLC/DWDR WDR 120dB White Balance Auto; manual Gain Control Auto; manual Noise Reduction 3D NR Smart Light Yes Mirror Off/On Privacy Masking Off/On (8 area, rectangle) Certifications Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) UL (UL60950-1 CAN/CSA C22.2 No.60950-1) Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Interface Audio Input Built-in mic (-A) Power Power Supply 12V ±30% DC Power Consumption Max 5.0W (12V DC, white light on) Environment Operating Temperature -40°C to 60°C (-40°F to 140°F); <95% (non-condensation) Storage Temperature -40°C to 60°C (-40°F to 140°F); <95% (non-condensation) Protection Grade IP67 Structure Casing Metal throughout the whole casing Camera Dimensions φ106.0 mm × 93.6 mm (φ4.17″ × 3.69″) Net Weight 0.46 Kg (1.01 lb) Gross Weight 0.61 Kg (1.34 lb)
