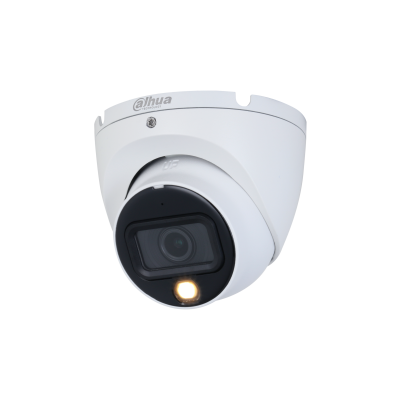

CCTV CAMERA - DAHUA DH-HAC-HDW1801TLP-0360 4K HDCVI IR EYEBALL

Camera Image Sensor 1/2.7 inch CMOS Effective Pixels 3840 (H)×2160 (V), 4K Electronic Shutter Speed PAL: 1/3s-1/100000s NTSC: 1/4s-1/100000s Minimum Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on IR Distance Distance up to 30m (98.43ft) IR On/Off Control Auto/Manual IR LEDs 1 Pan/Tilt/Rotation Range Pan: 0°-360° Tilt: 0°-78° Rotation: 0°-360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 3.6mm Max. Aperture F2.0 Angle of View 3.6mm: 104°×87°×47° (diagonal×horizontal×vertical) Iris type Fixed Iris Close Focus Distance 1m/1.8m (3.28ft/5.91ft) DORI Distance Lens Detect Observe Recognize Identify 3.6mm 146m (351ft) 58m (141ft) 29m (69ft) 15m (36ft) Video Video Frame Rate CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps CVBS: PAL/NTSC AHD: 4K@15fps; 5M@20fps; 4M@25fps/30fps TVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps Resolution 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480) Day/Night Auto switch by ICR BLC BLC/HLC/WDR WDR 120dB/WDR White Balance Auto; manual Gain Control Auto; manual Noise Reduction 2D&3D NR Smart IR Yes Electronic Defog Yes Digital Zoom 4X Mirror Off/On Privacy Masking Off/On (8 Area, Rectangle) Certifications Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 CAN/CSA C22.2 No.60950-1) Port Video Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port Power Power Supply 12V±30% DC Power Consumption Max 5.2W (12V DC, IR on) Environment Operating Temperature -40°C to 60°C (-40°F to 140°F); <95%(non-condensation) Storage Temperature -40°C to 60°C (-40°F to 140°F); <95%(non-condensation) Protection Grade IP67 Structure Casing Metal inner core plastic cover Dimensions φ97mm×85.8mm (3.82‘‘×3.38’’) Net Weight 300g (0.66lb) Gross Weight 380g (0.84lb)
