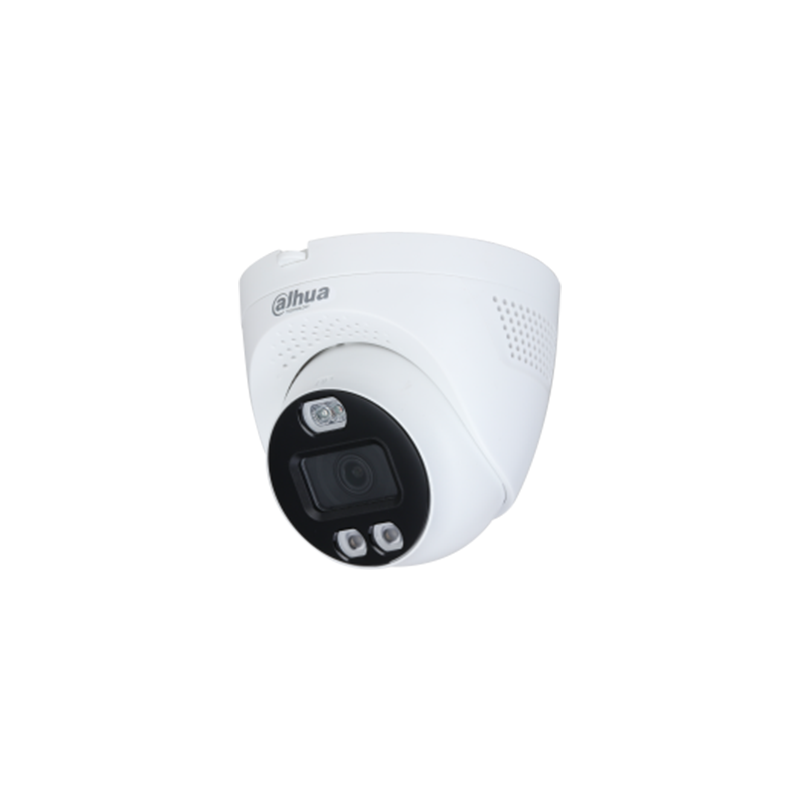

CCTV CAMERA - DAHUA DH-HAC-ME1509TQP-PV 5MP HDCVI FULL COLOR(2y)

Camera Image Sensor 1/2.7″ CMOS Max. Resolution 2592 (H) × 1944 (V) Pixel 5MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s S/N Ratio >65 dB Min. Illumination 0.005 Lux/F1.2, 0 Lux warm light on Illumination Distance 40 m (131.2 ft) Illumination Type Warm light Illuminator On/Off Control Auto; manual Illuminator Number 2 (Warm light) Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture 2.8 mm: F1.2 3.6 mm: F1.2 Field of View 2.8 mm: H: 98°; V: 71°; D: 129° 3.6 mm: H: 83°; V: 60°; D: 112° Iris Type Fixed iris Close Focus Distance 2.8 mm: 1.6 m (5.25 ft) 3.6 mm: 1.9 m (6.23 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 67.4 m (221.1 ft) 27 m  (88.6 ft) 13.5 m (44.3 ft) 6.7 m  (22.0 ft) 3.6 mm 77.8 m (255.3 ft) 31.1 m (102.0 ft) 15.6 m  (51.2 ft) 7.8 m  (25.6 ft) Video Frame Rate CVI: 5M@20 fps, 4M@25 fps/30 fps, 1080p@25 fps/30 fps; AHD: 5M@20 fps; TVI: 5M@20 fps; CVBS: 960H Resolution 5M (2592 × 1944); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) BLC Mode BLC/HLC/DWDR WDR DWDR White Balance Auto/Manual Gain Control Auto/Manual Noise Reduction 2D Smart Light Yes Mirror Off/On Privacy Masking Off/On (8 Area, Rectangle) Certifications Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010 A1:2015, EN 55035:2017, EN50130-4:2011 A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 CAN/CSA C22.2 No.60950-1) IEC 62368-1:2014 (Second Edition) Port Video Output 1 BNC output Support CVI/TVI/AHD/CVBS Alarm out 1ch alarm out Active Deterrence Red/Blue Light Warning Flash: 5 s–30 s; frequency: high/medium/low Sound Warning Audio 1/2/3; Volume: high/medium/low;  duration: 5 s–30 s; 110 dB Power Power Supply 12V ±30% DC Power Consumption Max 7.7W (12V DC, warm light on) Environment Operating Temperature –40°C to 60°C (–40°F to 140°F);  <95% (non-condensation) Storage Temperature –40°C to 60°C (–40°F to 140°F);  <95% (non-condensation) Ingress Protection IP67 Structure Casing Cover: Metal Rear: Plastic Pedestal: Plastic Camera Dimensions Φ109.9 mm × 100.9 mm (Φ4.33″ × 3.97″) Net Weight 0.32 kg (0.71 lb) Gross Weight 0.50 kg (1.10 lb)
