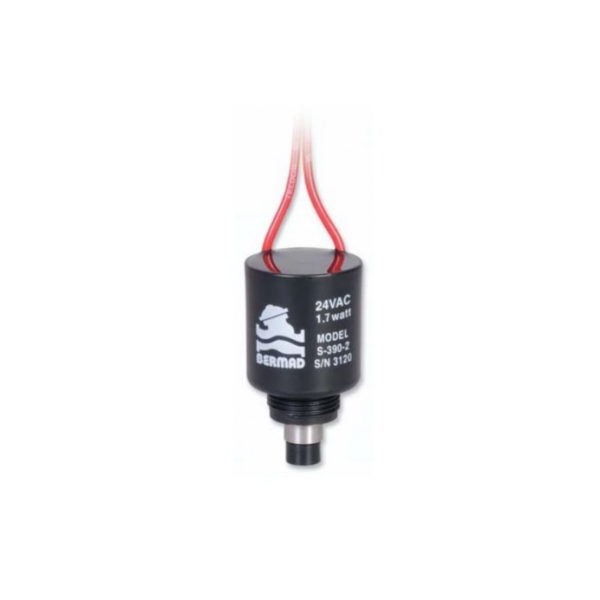

Features Low power consumption Low sensitivity to dirt Low sensitivity to voltage variations Highly durable in corrosive environments IP68 Rated Easy installaton, operation and maintenance Applications Systems distanced from control center Solenoid controlled on/off valves Solenoid controlled pressure and flow control valves Multiple valve systems See our BSP vs NPT Guide Overview The Bermad 2-Way S390-2 is a compact normally closed solenoid designed for reliable long life use in irrigation systems controlled by continuous current controllers. This solenoid is compatible with all continuous current controllers on the market. Specifications Base Port - 1 (1 /8” NPT) – Downstream Base Port - C(2) (1 /8” NPT) -Pressure (1) Brass Base Ports Size is 1 /4” NPT (2) Brass Base Common Port is marked “2” Solenoid to Base Connection: 3/4”; 20 UNEF Male Threaded Base Ports: Plastic - 1/8” NPT; Brass - 1/4” NPT Base orifice size: 1.8 mm Base Flow Factor: Kv = 0.08 m3/h @ 1 bar ΔP; Cv=0.09 GPM @1 psi ΔP Leads: 2 leads x 0.32 mm2 x 80 cm Operating Pressure Range: 0-10 bar Max. Temperature: water 80˚c; 180˚F
