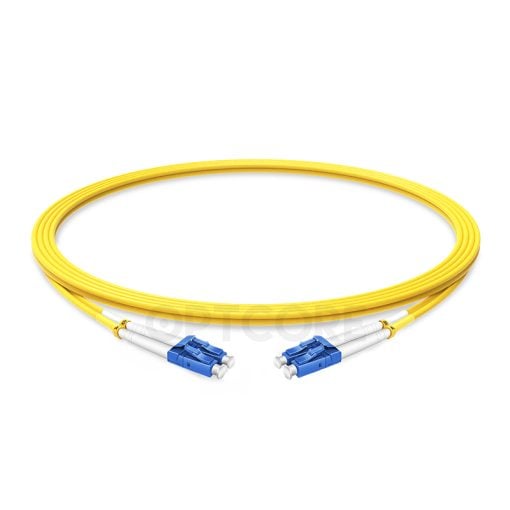

LC-LC 9/125 OS2 Singlemode LSZH Duplex Fiber Patch Cable

LC to LC 9/125μm OS2 Singlemode Duplex Fiber Patch Cable (LC-LC, 2.0mm, UPC Polish, LSZH, Yellow) Fiber Optic Patch Cable also is known as fiber patch cord, optical cable, or fiber optic jumper. As an essential component commonly used in fiber-optic networks, high-quality fiber patch cables are critical for any high-performance fiber-optic network. Optcore offers an extensive line of LC to LC 9/125µm OS2 single-mode duplex fiber optic patch cables with many choices of different lengths, jacket material, polish, and cable diameter. Those LC to LC 9/125µm single-mode OS2 fiber patch cables support long transmission distances with lower loss. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality, which provides an ideal fiber cabling solution with a highly competitive price for users in data communication and telecommunication networks. This LSZH fiber patch cable can replace PVC (OFNR) fiber patch cable but provide better fire rating performance. Features • Low insertion loss • High back reflection loss • Stable capability and high reliability • Excellent mechanical capability • LSZH Low smoke zero halogen jacket reduces the amount of toxic and corrosive gas emitted during combustion • Ideal solution for high-speed data transmission • 100% inspected for optical characteristics before shipment Superior Zirconia Ceramic Ferrule Premium Grade A Zirconia Ceramic Ferrule provides low insertion loss, precise alignment, and 500 times mating durability to ensure high-speed network transmission stability. LSZH Rated Outer Jacket The LSZH (Low Smoke Zero Halogen) jacket emits very little smoke and achieves minimal damage. Great substitutes for PVC (OFNR) fiber patch cable. 0.20dB Max. IL & 50dB Min. RL When performance and reliability are vital, use our quality fiber patch cable to build your network. Low insertion loss and high return loss provide a stable signal for your network at all times. Specification   Fiber Type 9/125µm Singlemode OS2 Fiber Count Duplex (2-fiber)   Connector Type LC to LC Polish UPC to UPC   Cable Length  1m,2m,3m … 50m or Customize Cable Diameter 2.0 mm   Tensile Strength 70 N Length Tolerance /- 1cm   Insertion Loss ≤0.2dB Return Loss ≥50dB   Repeatability ≤0.2dB Interchangeability ≤0.2dB   Jacket Material LSZH Jacket Color Yellow   Environment Operating: -20°C to 70°C Storage: -40°C to 85°C Compliance Telcordia GR-326-CORE RoHS compliant   Application Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication Other Indoor networks & telecommunications Country Of Origin China Ordering Information   Optcore Part Number   Description   LC-LC-SM-D1M-20-LS 1M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D2M-20-LS 2M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D3M-20-LS 3M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D4M-20-LS 4M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D5M-20-LS 5M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D7M-20-LS 7M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D10M-20-LS 10M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D15M-20-LS 15M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D20M-20-LS 20M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D25M-25-LS 25M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D30M-20-LS 30M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D40M-20-LS 40M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D50M-20-LS 50M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D75M-20-LS 75M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-D100M-20-LS 100M LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable   LC-LC-SM-DxM-20-LS Custom Length xM LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm LSZH Fiber Patch Cable Download Datasheet
